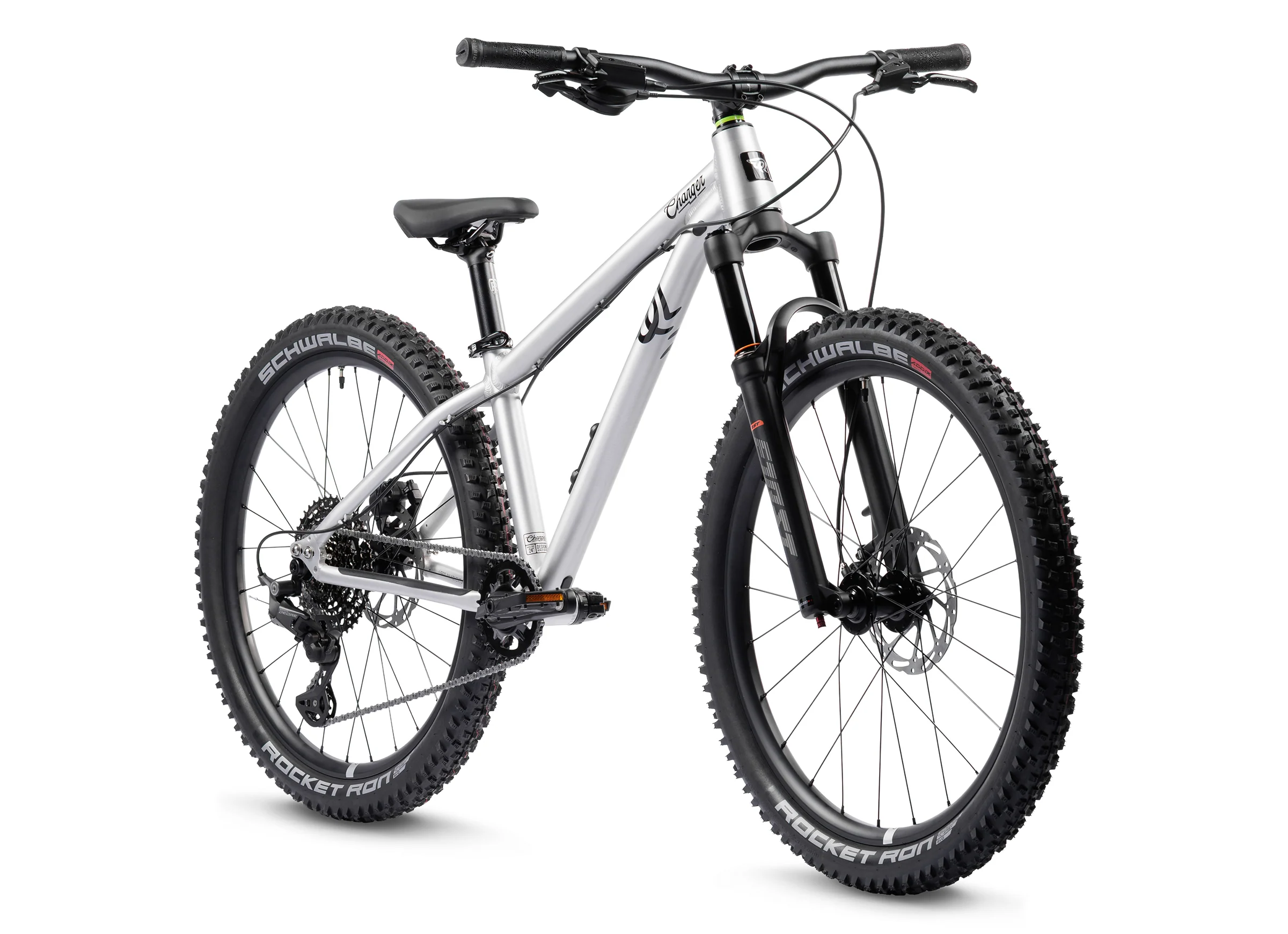

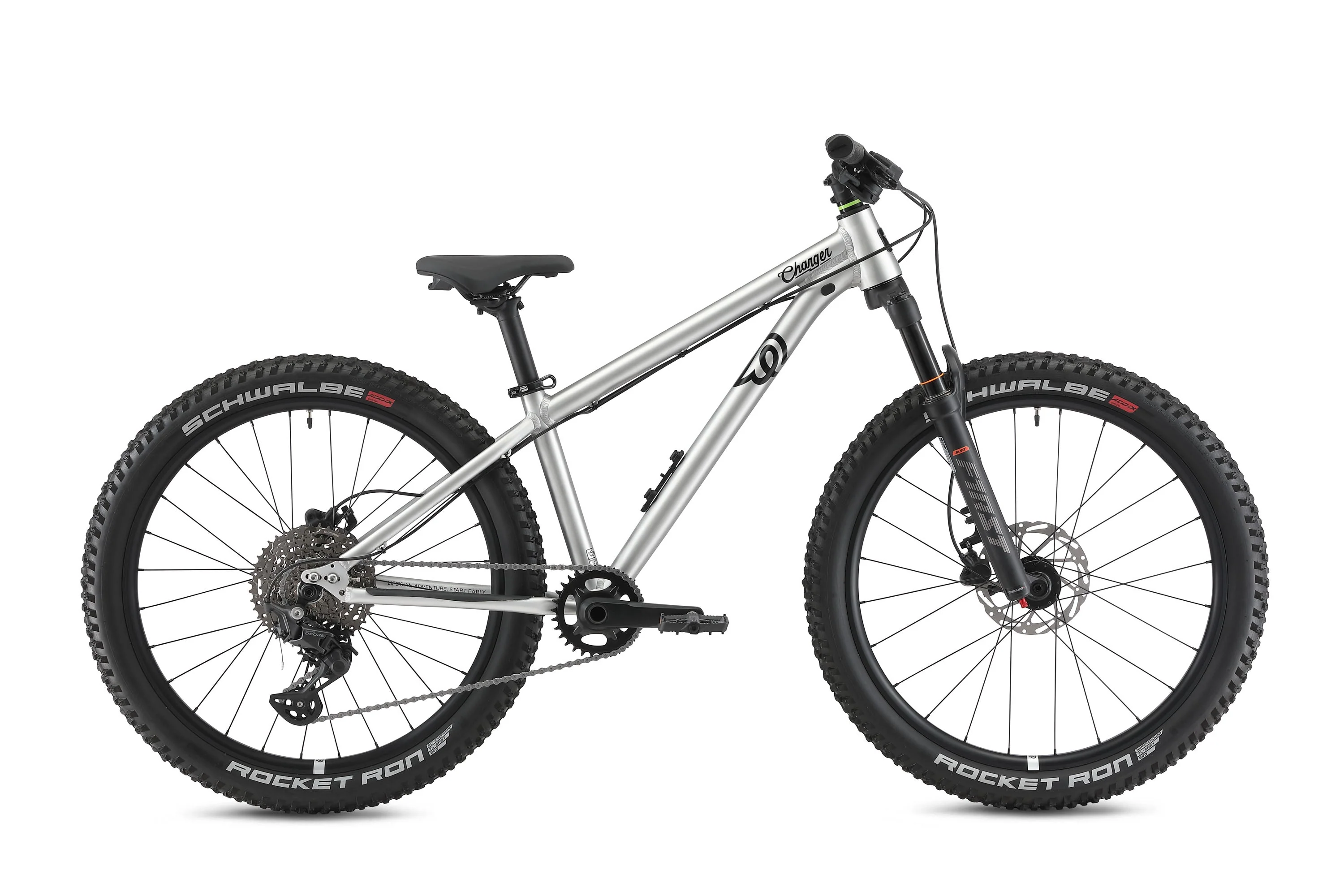

The Charger 24 is a trail-ready 24" hardtail built for young shredders who are serious about mountain biking. With 120mm RST air forks, a lightweight yet rugged frame, and trail-focused geometry, the Charger 24 delivers the control and confidence needed to tackle technical terrain. The Shimano CUES 10-speed drivetrain provides smooth, reliable shifting across varied inclines, while powerful Tektro hydraulic disc brakes offer dependable stopping power in all conditions. Sealed bearing wheels and wide 2.35" tires ensure grip and stability on loose or uneven ground. A 130mm crankset enhances pedalling efficiency for growing legs. Built to grow with the rider and ready for real adventures, the Charger 24 is the ultimate ride for kids ready to take on serious trails.

ASSEMBLY INSTRUCTIONS:

Your bike will arrive carefully packaged and boxed with the rear wheel attached. The front wheel will need attaching using the skewer supplied. The handlebar will be zip tied to the top tube, simply remove the bars and all packaging and attach to the stem. Add the saddle and adjust to the required height. Then simply add the pedals. Please retain your manual.

[Left column]

INSIDE LEG

54CM

FRAME

HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS

FORK

RST F1RST 120MM TRAVEL AIR SUSPENSION FORK

STEERER TUBE

AL6061

CRANKS

SAMOX 127MM DIRECT MOUNT, NARROW Q FACTOR

PEDALS

ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING

BOTTOM BRACKET

SAMOX 24MM EXTERNAL CUP

RIMS

20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE

REAR HUB

FOUR-BEARING CASSETTE FREEHUB, CNC'D AL6061

FRONT HUB

CNC’D 6 BOLT DISC, AL6061, QR SKEWER

CHAIN

KMC eGLIDE EPT

CHAINRING

DIRECT MOUNT, NARROW WIDE 30T

REAR CASSETTE

SHIMANO 10-SPEED 11-43t LINKGLIDE

SHIFTER

SHIMANO CUES 10-SPEED TRIGGER

*Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice*

CLICK HERE TO VIEW THE USER MANUAL

[Right column]

WEIGHT

11.5KGS W/O PEDALS

DERAILLEUR

SHIMANO DEORE 10-SPEED MECH

BRAKES

TEKTRO HYDRAULIC DISC, 160 ROTORS

LEVERS

TEKTRO SHORT REACH

FRONT TYRE

SCHWALBE SMART SAM 24x2.35", 67TPI WB

REAR TYRE

SCHWALBE SMART SAM 24x2.35", 67TPI WB

HEADSET

1 1/8” CARTRIDGE BEARING, CONVENTIONAL

STEM

FORGED AL6061, 35MM REACH, 6-BOLT

BARS

660MM DOUBLE BUTTED AL6061, 25MM RISE

GRIPS

ER LOCK ON KRATON 92MM

SEAT POST

27.2MM x 250MM AL6061

SADDLE

ER WING 2, RAILED

SEAT CLAMP

QR, 31.8MM

[Table]

STANDOVER HEIGHT	54CM
FRAME	HAND BRUSHED AL6061, FORGED SLIDING DROP OUTS
FORK	RST F1RST 120MM TRAVEL AIR SUSPENSION FORK
STEERER	TUBE AL6061
CRANKS	SAMOX 127MM DIRECT MOUNT, NARROW Q FACTOR
PEDALS	ER CNC'D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING
BOTTOM BRACKET	SAMOX 24MM EXTERNAL CUP
RIMS	20 X 28H, DOUBLE WALLED TUBELESS COMPATIBLE
REAR HUB	FOUR-BEARING CASSETTE FREEHUB, CNC'D AL6061
FRONT HUB	CNC’D 6 BOLT DISC, AL6061, QR SKEWER
AXLES	REAR: 12MM BOLT THRU, FRONT: 15MM BOLT THRU
CHAIN	KMC eGLIDE EPT
CHAINRING	DIRECT MOUNT, NARROW WIDE 30T
WEIGHT	11.5KGS W/O PEDALS
REAR CASSETTE	SHIMANO 10-SPEED 11-43T LINKGLIDE
BRAKES	TEKTRO HYDRAULIC DISC, 160 ROTORS
LEVERS	TEKTRO SHORT REACH
FRONT TYRE	SCHWALBE SMART SAM 24x2.35", 67TPI WB
REAR TYRE	SCHWALBE SMART SAM 24x2.35", 67TPI WB
HEADSET	1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM	FORGED AL6061, 35MM REACH
BARS	660MM DOUBLE BUTTED AL6061, 25MM RISE
GRIPS	ER LOCK ON KRATON 92MM
SEAT POST	QR, 31.8MM
SADDLE	ER WING 2, RAILED
SEAT CLAMP	ER BOLT, 28.6MM
DERAILLEUR	SHIMANO DEORE 10-SPEED MECH

SPEC NOTICE

Every effort has been made to ensure accuracy throughout this website. However, Early Rider reserves the right to change prices and bike specifications without prior notice

[Table spec]


A	Wheelbase	992.7mm
B	Head Angle	67°
C	Seat Tube Length	320mm
D	Chainstay Length	355mm
E	Seat Tube Angle	73°
F	Standover Height	620mm
G	Top Tube Length	513.8mm
H	Head Tube Length	100mm
I	Stack	539.3mm
J	Reach	348.9mm
K	Fork Length	459mm
